S8901-54XC
25/100G Data Center Switch
S8901-54XC

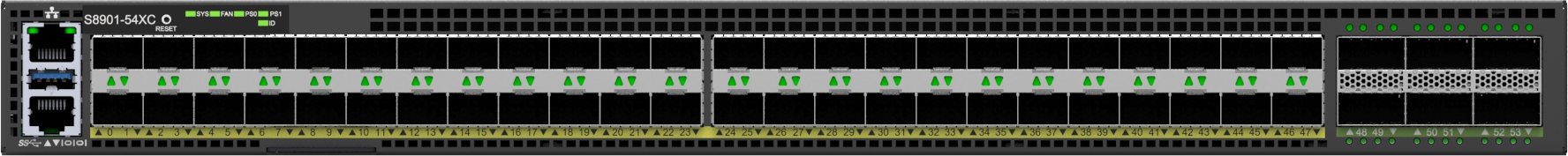

48 x 25G SFP28 & 6 x 100G QSFP28 Ports
- 1 RU, Data Center Leaf/ToR Switch
- 2.0Tbps switching capacity
- 6 x 40/100G QSFP28 ports
- 48 x 1/10/25G SFP28 ports
- 1 x 100/1000M RJ-45 management port
- 1 x RJ45 serial console port
- 1 x USB 3.0 Type-A port

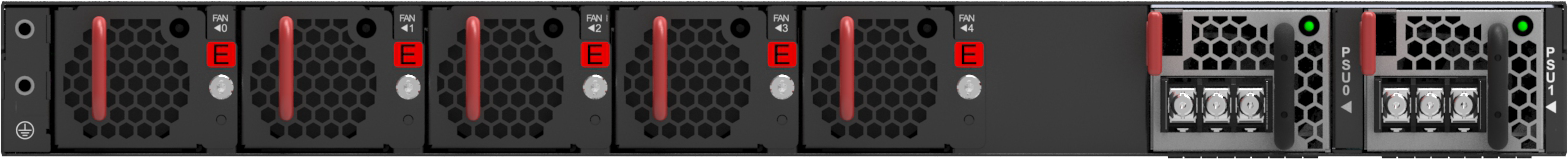

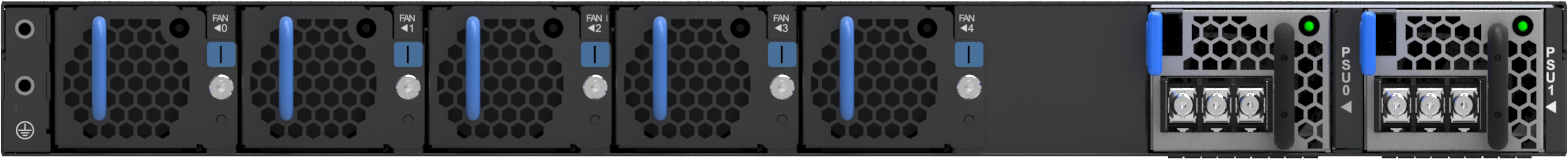

- Front-to-back or Back-to-front airflow available
- Supports ONIE
OVERVIEW
The UfiSpace S8901-54XC is a high-performance, data center networking white box switch that is designed to address the fast growing segment of the data center switching market and the needs to push service capacity to the next level.
With 6 x 100G QSFP28 ports and 48 x 25G SFP28 ports, the S8901-54XC data center switch utilizes the Broadcom Trident3-X5 silicon to provide intelligent features and structured management for centralized servers to enable high-efficiency Ethernet connectivity for data center services.
These switches deliver performance and intelligence to the network edge in a flexible 1RU form factor that helps reduce infrastructure and administrative costs.
The S8901-54XC brings data centers into the future networking with a powerful Intel Denverton 4-core processor and high-speed 25G and 100G interfaces. It comes with redundant, hot swappable components for convenience, increased availability, reliability and lower costs of maintenance.
FEATURES
- High density 25G service interfaces
- 2.0Tbps switching bandwidth capacity
- Broadcom Trident3-X5 Silicon
- Front-to-back and Back-to-front airflow options
- Flexible and efficient data processing
- On-chip packet buffers minimize the data latency
- Enable real-time network status visibility
- BMC for monitoring and managing equipment health status
- 1 + 1 hot swappable power supply field replaceable units
- 4 + 1 hot swappable fan field replaceable units
SPECIFICATIONS
Physical
Processor | Intel Denverton 4 Core @ 1.6GHz |
Memory | 8GB DDR4 (Up to 32GB) |
Storage | 32GB SSD |
ASIC | Broadcom Trident3-X5 BCM56770 |
BMC | AST2620 |
Chassis | 1RU, 440W x 440D x 43.8H mm (17.32" x 17.32" x 1.72") Weight: 8.7 kg (19.18 lbs) |
Redundancy | 1+1 hot swappable power units 4+1 hot swappable fan units |
Environmental
Power Specs. |
AC input: 100 to 240V, 6A Typical power: 120 Watts (no transceiver) |
Operating Specs. | Operating temperature: 0°C to 45°C (32°F to 113°F) Operating humidity: 5% to 95% (RH), non-condensing |
Non-Operating Specs. | Storage temperature: -40°C to 70°C (-40°F to 158°F) Storage humidity: 5% to 95% (RH), non-condensing |
