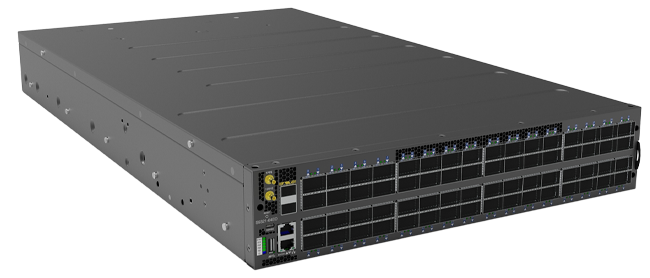

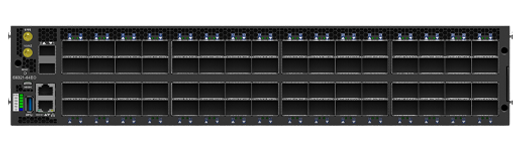

S9321-64EO
800G Datacenter Switch for AI/ML
- 2RU, 800G Data Center Spine Switch for AI/ML
- 51.2Tbps switching capacity
- 64 x 200/400/800G OSFP ports
- 1 x 100/1000M RJ-45 OOB management port
- 1 x RJ45 serial console port
- 1 x USB 3.0 Type-A port
OVERVIEW
Next generation cloud service applications not only consume more data, it requires service providers to build more flexible, agile and scalable networks to meet the increasing demands of their customers.
The evolution to 800G will provide data centers with the capability to meet capacity and utilization demands of AI application. The S9321-64EO 800G data center switch will provide data centers with a rich set of features such as advance adaptive routing, powerful load balancing and end-to-end congestion control to address the high performance networking demands of AI/ML network to minimize the job completion time (JCT).
FEATURES
- Hardware-based encapsulation includes Multiprotocol Label Switching(MPLS), and generic routing encapsulation(GRE)
- Enhanced buffering and traffic management with Priority-based Flow Control (PFC) and Enhanced Transmission Selection(ETS)
- 5nm process technology delivers unmatched power efficiency and performance
- Hardware-based link failover Improves network resiliency and reduces JCT
- Advanced adaptive routing and end-to-end congestion control capabilities
- Designed to handle the large, low entropy flows typical of AI/ML workloads
For additional information or samples of our S9321-64EO, please contact our sales team.
SPECIFICATIONS
For additional information or samples of our S9321-64EO, please contact our sales team.
Physical
Processor | Intel® Icelake-D 4-Core @ 1.9GHz |
Memory | 32GB DDR4 |
Storage | 128GB SSD |
ASIC | Broadcom Tomahawk5 BCM78900 |
BMC |
AST2620 |
Chassis |
2RU, 436W x 762D x 87.7H mm (17.17" x 30" x 3.45") Weight: 23.74 kg (52.33 lbs) |
Redundancy | 1+1 Hot swappable power units 3+1 Hot swappable fan units |
Environmental
Power Specs. | AC input: 200 to 240V, 16A DC input: -40 to -72V, 80A Typical power: 793 Watts (no transceiver) |
Operating Specs. | Operating temperature: 0°C to 40°C (32°F to 104°F) Operating humidity: 5% to 95% (RH), non-condensing |
Non-Operating Specs. | Storage temperature: -40°C to 70°C (-40°F to 158°F) Storage humidity: 5% to 95% (RH), non-condensing |
