S9501-18SMT

18-Port 1/10GE Disaggregated Cell Site Gateway

  • Lightweight, Economic Cell Site Gateway
  • Supports SyncE and IEEE 1588

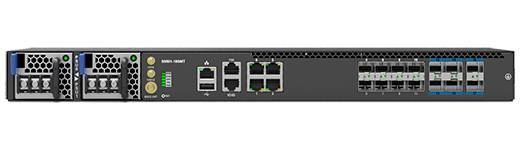

  • 4 x 100M/1GE RJ45 ports
  • 8 x 100M/1GE/2.5GE SFP ports
  • 6 x 1GE/2.5GE/10GE SFP+ ports
  • 1 x RJ45 serial console port
  • 1 x 1000 Base-T Ethernet port for Out-of-Band management
  • 1 x USB 2.0 Type-A general purpose port
  • GNSS, 1PPS, 10M, and ToD timing ports
OVERVIEW

The UfiSpace S9501-18SMT is a lightweight and economic disaggregated cell site gateway (DCSG) that can aggregate both legacy and next-gen. BBU data traffic. It also enables the deployment of open and disaggregated transport network services, while addressing the changing needs of the backhaul transport as telecoms make the transition from legacy technologies towards 5G New Radio (5G NR).

The S9501-18SMT is designed with high-speed interfaces (100M/1G serial RJ45, 1GE SFP and 10GE SFP+), timing synchronization interfaces (ToD, 1PPS and 10MHz) and BMC for remote monitoring and managing features. It is equipped with Broadcom's Qumran-UX merchant silicon chip and provides 64GB switching capacity, 87.5Mpps packet throughput and 1GB deep packet buffer to accommodate the evolving cell site requirements of 5G services.

The S9501-18SMT can also be an integral part of the 5G private network and wireless backhaul as well. It is an OCP and TIP compliant open network white box solution that can support open standard NOS applications for flexibility in management, orchestration and feature expansions.

Furthermore, UfiSpace's disaggregated cell site gateway routers are designed for outside plant installation, with temperature hardened case, front facing access and compact size to fit into smaller cabinets. Furthermore, the S9501-18SMT has hot-swappable power supplies and fan modules to provide convenience and lower the costs of maintenance.

FEATURES
  • Utilizes UfiSpace timing module for Class C accuracy
  • Supports SyncE and IEEE 1588v2 (T-GM, T-BC/OC, T-TC, T-TSC)
  • Integrated Stratum 3E OCXO with optional hold over performances
  • Rich timing input/output interfaces: ToD, 1PPS and 10MHz
  • Integrated GNSS receiver with passive or active antenna support
  • 1GB deep buffering
  • BMC for remote monitoring and management
  • 2 hot swappable power supplies with 1+1 redundancy support

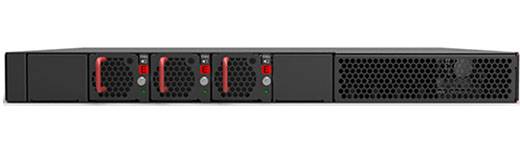

  • 3 hot swappable fan modules with 2+1 redundancy support
  • 1 RU compact design with 302mm depth suitable for standard 19" racks
SPECIFICATIONS
Physical
Processor Intel Denverton-NS C3508 4 Cores @1.6GHz
Memory 1x 8GB DDR4 SO-DIMM with ECC
Storage 1x 32GB SSD
ASIC Broadcom Qumran-UX BCM88272
Chassis 1RU, 440W x 43.5H x 302D mm (17.32" x 1.713" x 11.89")
Weight: 6.6 kg (14.55 lbs)
Redundancy Hot swappable, 1+1 redundant PSU
Hot swappable, 2+1 redundant fans
Environmental
Power supply AC input: 100 ~ 240V, 3~1.5A, 50-60Hz
DC input: -36 ~ -75V,  8~4A
Max power: 200 Watts
Operating Spec. Operating temperature: -40°C to 65°C (-40°F to 149°F)
Operating humidity: 5% to 95% (RH), non-condensing
Non-Operating Spec.  Storage temperature: –40°C to 70°C (–40°F to 158°F)
Storage humidity: 5% to 95% (RH), non-condensing
