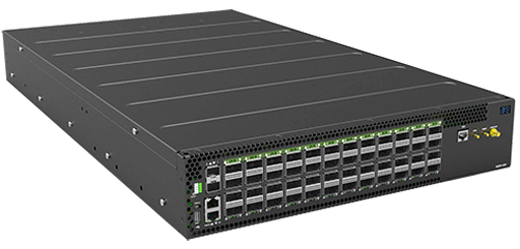

S9600-48X

48-Port, 100GE Open Aggregation Router

  • Multi-function Aggregation Router
  • Supports SyncE and IEEE 1588

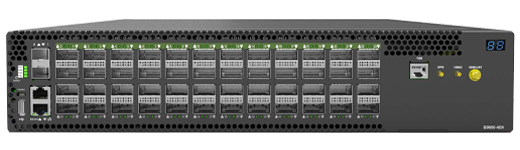

  • 48 x 100GE QSFP28 ports
  • 2 x 10GEBase SFP+ management ports
  • 1 x RJ45 serial console port
  • 1 x GE OOB management port
  • 1 x USB 2.0 Type-A general purpose port
  • 1 x RS232 console port in RJ45 form factor
  • 1 x Micro USB port
  • GNSS, 1PPS, 10MHz, and ToD timing ports
OVERVIEW

The S9600-48X open aggregation router, is a multi-function, disaggregated white box aggregation router. It is equipped with Broadcom's Jericho2 merchant silicon and an Intel Broadwell-DE 8-core processor for high capacity routing with 8GB deep buffer. It features 48x100GE high speed ports with a switching capacity of up to 4.8Tbs.

The S9600-48X can be deployed at C-RAN hubs to provided RAN vendor agnostic fronthaul transport aggregation or be positioned at the backhaul for aggregating BBU pooling. It can also be programmed to be a Broadband Network Gateway (BNG) to enable the next generation broadband network. Equipped with high port density, Class C timing and fully supporting SyncE and IEEE 1588v2, our S9600-48X is capable of fulfilling the role of any type of network aggregation.

For datasheets, documentation or samples of our S9600-48X, please contact our sales team.

FEATURES
  • Utilizes UfiSpace timing module for Class C Accuracy
  • Supports SyncE and IEEE 1588v2 (T-GM, T-BC/OC, T-TC, T-TSC)
  • Integrated Stratum 3E OCXO with optional hold over performances
  • Rich timing input/output interfaces: ToD, 1PPS and 10MHz
  • Integrated GNSS receiver with passive or active antenna support
  • 8GB deep buffering
  • BMC for remote monitoring and management
  • 2 hot swappable power supplies with 1+1 redundancy support.

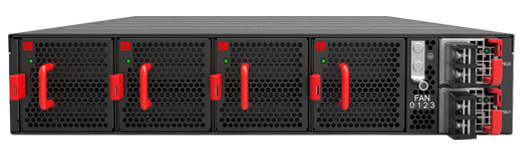

  • 4 hot swappable fan modules with 3+1 redundancy support.
  • 2 RU compact design, suitable for industry standard 19" racks.

For datasheets, documentation or samples of our S9600-48X, please contact our sales team.

SPECIFICATIONS

For datasheets, documentation or samples of our S9600-48X, please contact our sales team.

Physical
Processor Intel Broadwell-DE D-1548 8 Cores @2.0GHz
Memory 2x16GB DDR4 R-DIMM with ECC
Storage 1x128GB SSD
ASIC Broadcom Jericho2 BCM88690
Chassis 2RU, 436W x 87.7H x 790D mm (17.16" x 3.45" x 31.1")
Weight: 24.68 kg (54.41 lbs)
Redundancy 1+1 hot swappable power units
3+1 hot swappable fan units
Environmental
Power supply AC input: 200 ~ 240V
DC input: -40 ~ -75V
Max power: 1600 Watts
Operating Spec. Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating humidity: 5% to 85% (RH), non-condensing
Non-Operating Spec.  Storage temperature: –40°C to 70°C (–40°F to 158°F)
Storage humidity: 5% to 95% (RH), non-condensing
