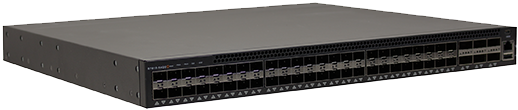

S7810-54QS

10G/40G 雲端數據中心交換器

S7810-54QS

48 x 10GE SFP+ & 6 x 40GE QSFP+ Ports

  • Compact full featured modular 10GE/40GE datacenter switch
  • 1 Mini USB serial console port with mini-USB to RJ45 converter cable
  • 1 10/100/1000 Base-T Ethernet for Out-of-Band management
  • 1 USB 2.0 Type-A port
概論

專為雲端數據中心設計的高密度交換器

隨著頻寬需求不斷成長,雲端數據中心必須持續強化自身網路環境的密度。S7810-54QS 是一款雲端數據中心級 10GE/40GE 交換器,專門用來滿足客戶的大量資料交換需求,並提供優越效能及無人能敵的可靠性。 S7810-54QS 的小型交換器體積雖小,卻搭載大量的 10GE 和 40GE 連接埠,讓自動化及協作再也不是難事, S8810-32Q 具創新架構和雲端數據中心必備的眾多功能,雲端數據中心網路架構得以簡化。

S7810-54QS 低延遲和高密度的連接埠,方便未來輕鬆進行擴充,足以滿足未來增加的頻寬需求。靈活、可靠且效能優異的S7810-54QS,可以最大化投資報酬,同時確保遵守環境政策。

特色
  • 48 x 10GE SFP+ & 6 x 40GE QSFP+ ports
  • Modular dual power supply with overcurrent, overvoltage, and overheating protection.
  • Next-generation spine-leaf network architecture, enhancing capacity and optimizing scaling.
  • CPU: Intel® Rangeley C2558 2.4G 4-Core.




規格
硬體規格
處理器 Intel® Rangeley C2558 2.4G 4-Core
記憶體     DDR3 8GB w/ ECC SODIMM
儲存技術 M.2 SSD 64GB
ASIC Broadcom BCM56854 (Trident 2)
機箱規格 1 RU, 440w x 44h x 406d mm (17.32" x 1.73" x 15.98")
Weight : 9.68 kg (21.34 lb)
風扇配置 Two hot swappable power supplies with integrated fans and trays
環境規格
電源供應器 AC input: 100V-240V, 7~3.5A , 60/50Hz
DC input: 240V, 2.75A (240Vdc China only)
Typical/Max power draw: 285/370 Watts
操作環境規格 Operating temperature: 0°C to 45°C (32°F to 113°F)
Operating humidity: 10% to 90% (RH), non-condensing
儲存環境規格  Storage temperature: –40°C to 70°C (–40°F to 158°F)
Storage humidity: 5% to 95% (RH), non-condensing
