S9300-32D

400G 數據中心交換器

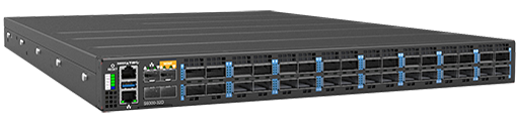

S9300-32D

32 x 400GE QSFP-DD Ports

  • 1 RU, Data Center Spine Switch
  • 12.8Tbps switching capacity
  • 32 x 400GE QSFP-DD ports
  • 2 x 10GE SFP+ management ports
  • 2 x10GE SFP+ OOB management ports
  • 1 x 10/100/1000 RJ-45 OOB management port
  • 1 x RJ45 serial console port
  • 1 x USB 3.0 Type-A port
概論

The UfiSpace S9300-32D is a high-performance, data center networking white box switch that is designed to address the fast growing segment of the data center switching market and the needs to push service capacity to the next level. With 32 x 400GE QSFP-DD ports, the S9300-32D data center switch is where computer resources (servers or blade chassis) are centralized and managed in a structured way utilizing high-efficiency Ethernet connectivity.These switches deliver performance and intelligence to the network edge in a flexible 1RU form factor that helps reduce infrastructure and administrative costs.

The S9300-32D is the epitome of future networking with a powerful 8-core processor and 32 high-speed 400GE interfaces. It comes with redundant, hot swappable components for convenience, increased availability, reliability  and lower costs of maintenance.

特色
  • High density 32 x 400GE service interface
  • 12.8Tbps switching bandwidth capacity
  • Broadcom Trident4 Silicon
  • Flexible and efficient data processing
  • On-chip packet buffers minimize the data latency
  • Enable real-time network status visibility
  • BMC for monitoring and managing equipment health status
  • 1 + 1 hot swappable power supply field replaceable units
  • 5 + 1 hot swappable fan field replaceable units
規格

硬體規格

處理器 Intel Skylake-D D-2145NT 8 Cores @1.9GHz
記憶體     2x16GB DDR4 R-DIMM with ECC support
儲存技術 1x128GB SSD
ASIC     Broadcom Trident4 BCM56880
機箱規格 1RU, 436 x 44.0 x 645 mm (WxHxD), 17.17 x 1.73 x 25.4 in.
Weight: 29 kg (63.9 lbs)

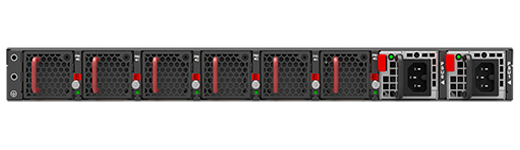

風扇配置 1+1 hot swappable power units
5+1 hot swappable fan units
環境規格
電源供應器 AC input: 200 ~ 240V
DC input: -40 ~ -75V
Typical power: 304 Watts (no transceiver)
操作環境規格 Operating temperature:  0°C to 40°C (32°F to 104°F)
Operating humidity: 10% to 90% (RH), noncondensing
儲存環境規格  Storage temperature: -40°C to 70°C (-40°F to 158°F)
Storage humidity: 5% to 95% (RH), non-condensing
