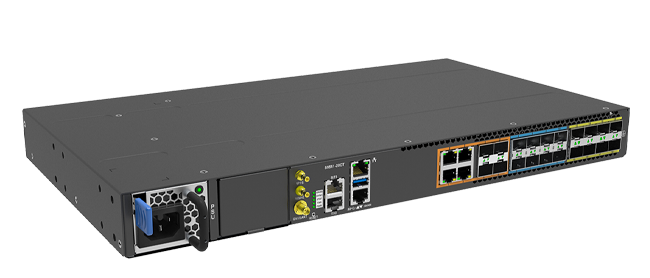

S9511-20CT
S9511-20CT _Front
S9511-20CT _Rear
S9511-20CT
S9511-20CT _Front
S9511-20CT _Rear

S9511-20CT

20-Port 1/10/25G Disaggregated Cell Site Gateway Router

  • Supports TSN, SyncE, and IEEE 1588
  • 8 x 1/10/25G SFP28 ports
  • 8 x 1/10G SFP+ ports
  • 4 x 1G SFP/RJ45 combo ports
  • 1 x RJ45 serial console port
  • 1 x 100/1000M RJ45 management port
  • 1 x USB 3.0 Type-A general purpose port
  • GNSS, 1PPS, 10MHz, ToD and BITS timing ports
  • Segment routing support
概論

UfiSpace S9511-20CT 是一款高性能、多功能的開放網路蜂巢基地台回傳路由器（DCSG），專為回程傳輸需求的變化而設計，滿足電信業從傳統技術向 5G 過渡的需求。它使電信和服務供應商能夠部署解耦的開放網路基礎設施，以降低成本並快速擴展現有服務，用於邊緣運算、行動回傳網路和寬頻接取應用。

S9511-20CT 具有面向未來的設計，配備 20 個高速介面，包括可動態設置的 1G 組合埠和 10G/25G 選項，支援多種客戶端連接。其 250mm 深度設計和耐高溫設計，適合安裝於室內或戶外機房。

特色
  • Class C timing accuracy
  • Supports Time Sensitive Networking (TSN) for low packet loss and low delay variation
  • Supports SyncE and IEEE 1588v2 (T-GM, T-BC/OC, T-TC, T-TSC)
  • Integrated Stratum 3E OCXO with optional hold over performances
  • Rich timing input/output interfaces: ToD, 1PPS, BITS and 10MHz
  • Internal GNSS receiver for master clock implementations
  • 1GB deep buffering
  • Segment routing support
  • 1 RU compact design with 250mm depth, suitable for industry standard 19" racks

For additional information or samples of our S9511-20CT, please contact our sales team.

規格

For additional information or samples of our S9511-20CT, please contact our sales team.

硬體規格
處理器 Intel Denverton-NS 4-Core @ 1.6GHz
記憶體     8GB DDR4
儲存技術 32GB eMMC
ASIC     Broadcom Qumran2n BCM88295
機箱規格 1RU, 440W x 250D x 43.5H mm (17.32" x 9.84" x 1.713")
Weight: 4.18 kg (9.21 lbs)
備援配置 Dual-feed one power stage power unit
3+1 Fixed fan units
環境規格
電源規格 DC input: -36V to -72V, 8A
Typical power: 63 Watts (no transceiver)
操作環境規格 Operating temperature:-40°C to 70°C  (-40°F to 158°F)
Operating humidity: 5% to 95% (RH), non-condensing
儲存環境規格  Storage temperature: -40°C to 70°C (-40°F to 158°F)
Storage humidity: 5% to 93% (RH), non-condensing
應用

Mobile Backhaul

Private 5G
